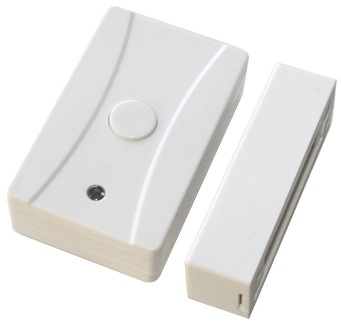

EWD1 Magnetic Door Sensors

EWD1 Magnetic door contact with panic button. This is a wireless device with magnetic contact which can be used to protect doors, windows etc. When EWD1 is connected to the EPIR2, two wireless zones are added. First wireless zone is used to monitor the magnetic contacts and the second wireless zone is for managing the panic button. By default panic button zone is configured as Silent zone and in case of violation, system will cause an alarm.

Battery type: CR2032 3V Lithium
Number of batteries: 1
Battery operation time: ~18 months
Radio transmitter-receiver frequency: 866.1 MHz - 869.5 MHz
Range of Operating Temperatures: -20...+55°C
Door contact dimensions: 60x37x18mm
Magnet dimensions: 60x17x16mm
Radio communication range: 30 meters in premises; 150 meters in open areas
