Maserati 3200GT & 4200GT
Re-coding the OE Meta Alarms
Please note we are unable to re-code ignition keys to the ECU, we only offer a re-code service for the Meta alarm system fitted to these vehicles
For prices & more information click here

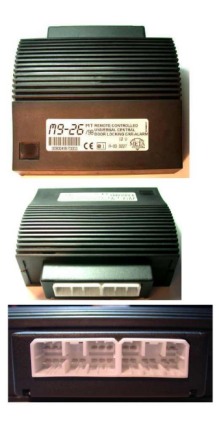

Many of the 3200GT series cars are fitted with the Meta M9-26 alarm system as standard, they can also be fitted with the M321 which just controls the central locking remotely. If the supplied fob has a single button protruding from the side of the ignition key means that either of these systems are fitted. Both control units are hidden behind the rear pasenger side cover (near side), remove rear seat and side cover to access the unit.

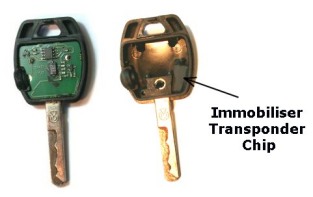

If the existing remote fobs no longer operate with the alarm we can recode them back to work in combination again. Remove the circuit board(s) from the ignition keys & send them complete with the alarm control unit for re-coding, the vehicle will still operate as normal using the ignition key providing the transponder chip is not removed (see photo below), to open the case simply insert a screwdriver or flat blade into the side where the top & bottom covers meet, twist the blade so the top cover will unclip from the base giving access to the circuit board which can easily be removed.
Please note these fob circuit boards are only available from Maserati, we can supply remote fobs that work with the alarm but they are of a different design and will not fit inside the standard ignition key. For the style of fobs we supply & all information about Meta alarm fobs click here

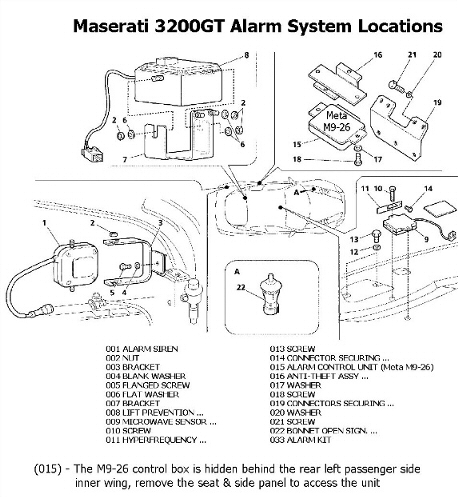

A guide of how to access & remove the 3200GT alarm can be found here

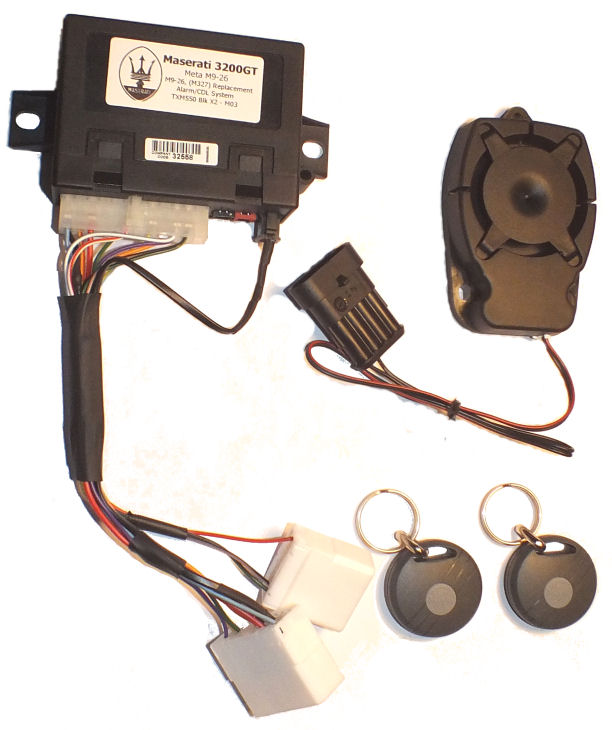

M9-26 Plug & Play Replacement kit now available
Plug & play replacement alarm ECU for the Meta M9-26 alarm or the M321rc remote central locking control box fitted to the Maserati 3200GT. This modified Meta alarm ECU has adapter plugs fitted allowing a simple plug & play swap over with the original M9-26 unit, this has no alarm functions & will only operate the central locking remotely. Supplied with two TXM550 fobs
The Original Maserati M9-26 unit can be purchased here

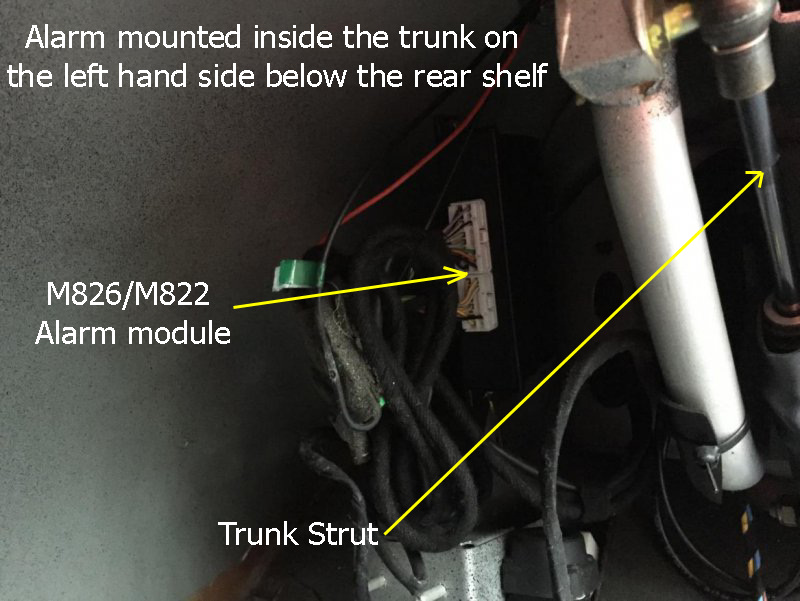

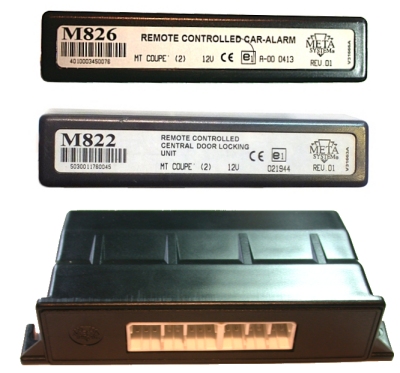

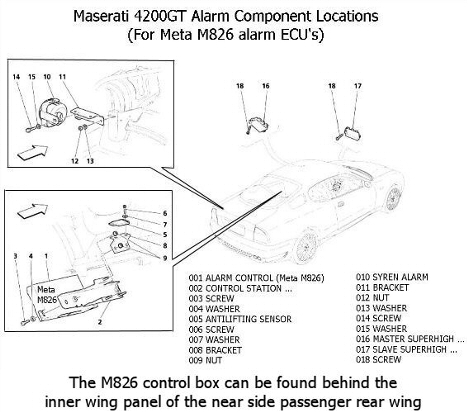

Many of the 4200GT series cars are either fitted with the Meta M826 alarm system or the M822 remote locking system as standard, if the supplied fob has a two button fob the chances are that this alarm is fitted. Just like the 3200GT the alarm control unit is hidden behind the rear pasenger side cover (near side), remove rear seat and side cover to access the unit.
If the existing remote fobs no longer operate the alarm we can recode them back to work with the alarm again. Remove the circuit board(s) from the ignition keys & send them complete with the alarm control unit for re-coding, the vehicle will still operate as normal using the ignition key.
We can now supply the 2 button circuit boards for the 4200 alarm, for more info click here (we are unable to saupply the fob cases or rubber button membrane)
Other Meta fobs click here

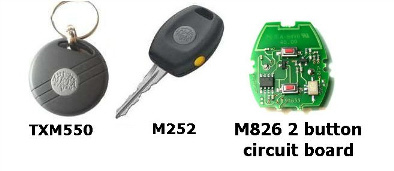

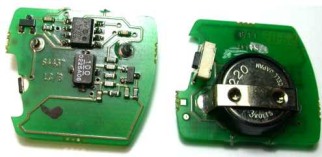

We can now supply the two button circuit board below
4200GT fob circuit board

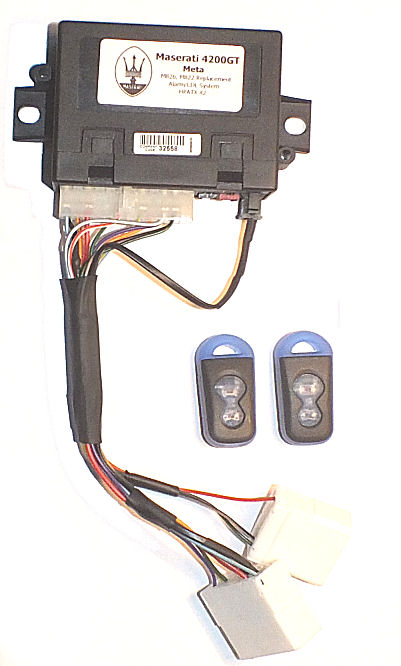

M826 Plug & Play Replacement kit now available
Plug & play replacement alarm ECU for the Meta M826 alarm or the M822 remote central locking control box fitted to the Maserati 4200GT. This Meta ECU has been modified making a simple plug in replacement for the very expensive M826 ECU. This unit will remotely operate the central locking & remotely open the boot, it has many of the alarm functions as the original & will function with the existing siren (if replacing the M822 the alarm functions will not be present, only controlling the central locking & boot opening). Supplied with two HPA type fobs which can also be upgraded to the standard 2 button circuit boards (choose below), sorry we are unable to supply the cases for the Maserati circuit boards.
The original M826 ECU can be purchased here
All re-codes include a new 16 digit code for future coding of replacement fobs & next day return delivery (We can offer a 48 hour turnaround - excludes weekends)
Recoding the M9-26 click here
Recoding the M826 click here
For any other configurations please contact the office on 0208 677 1999
We offer a 48 hour (working days, within the UK, subject to Royal Mail limitations) reprogram service. Outside the UK contact the office for shipping charges.
A maximum of 7 fobs can be coded to the alarm ECU
Please send your ECU to:
Abacus Car Alarms
206 Leigham Court Road
For orders outside the UK please contact the office for shipping charges, when sending from outside the EU do not mark the package value as more than $15 as UK customs will charge import duty which is non refundable & please mark the package as 'Item for repair'
Please remove the heavy mounting bracket before sending
SC1T2 Siren For the M826 (4200GT)
The M11a siren for the M9-26 (3200GT) is no longer available
