EPIR2

The EPIR2 is a complete alarm system all contained within the body of what looks like a standard PIR movement sensor. Built into its construction is a GSM module giving two way monitoring & control to up to 10 mobile and/or landline numbers. When an intruder alert is detected the EPIR2 will text any or all of these numbers, it will call the first number in the list enabling the called user to listen in on what's happening around the monitered area & then decide what action to be taken in case of intrusion.

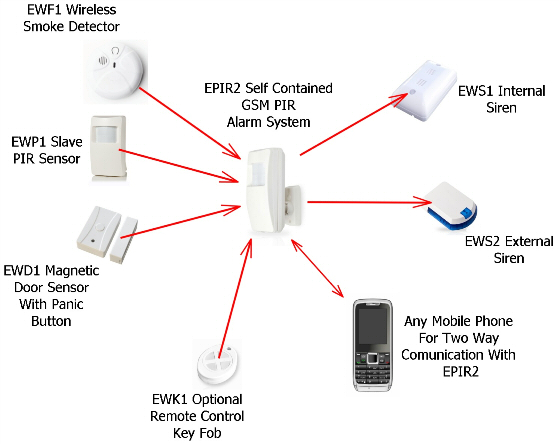

The EPIR2 can be expanded with up to 16 external wireless sensors & wireless sirens. It can also be hard wired to a loop circuit & also to a simple two wire siren

Protect almost any enclosed space including homes, shop premises, lockups, garages, outbuildings, caravans, motorhomes, boats etc. Even protect in areas where no mains power supply is available, using the optional battery leads connect the EPIR2 to a 12 volt car battery, depending on battery capacity the EPIR2 can last for 6 months or more between charges (up to 125 days on a 60A/hr car battery) even more if solar charging is employed.

Download User Manual

More Info/Buy Online

Special Offer

Eldes security kit which includes one EPIR2 Control Unit, One EWD1 wireless door contacts & One EWS2 Extrenal Siren

More Info

Features:

• Easy Self install system
• Arm/disarm by phone call free of charge or optional EWK1 keyfob or EKB3W keypad

• Can use PAYG sim, pay only for texts sent

• Can send a text at set intervals to keep PAYG SIM alive

• Quad-Band GSM/GPRS communicator

• Text and/or CALLS up to 10 authorised users

• Sends a text on alarm detection

• On alarm automatically calls designated phones to listen to the surrounding area (can be switched off)

• Built in microphone for listening to the surrounding area

• Listen in at any time whether an alarm has be made or not

• Up to 24 hour built in battery backup (SMS sent for power failure)

• 3 ways of configuration: SMS, USB or Internet

• Easy to program via PC (Download the free configuration tool here)

• Event Log access by Internet

• Low power consumption (20ma in armed mode)

• Can operate from a car battery with a battery life of up to 125 days (on a 60Ah battery)

• Wired output for siren (150Ma max)

• Wired input for loop or make circuits

• Up to 16 external wireless sensors can be added

• Built in scheduler, can be switched on & off at preset times

• Wireless range up to 30m in premises; up to 150m in open areas

• 2 Year Warranty


Applications:

• Security of premises
• Electric power network failure control

• covert listening failure control

• Security of motor caravans

• Technical specifications:


Technical:

• On-board zones 1 digital infrared PIR sensor zone and 1 wired zone
• Expandable zones up to 32

• Expandable programmable outputs up to 32

• Wireless 868MHz integrated

• Expandable wireless devices: (zones, PGM, key fobs, etc) 16

• Event Buffer 500

• Built in GSM/GPRS module 850/900/1800/1900 MHz

• Ways of event communication Ademco Contact ID, SMS, Voice Calls, Kronos

• Authorized users 10

• Microphone

• Backup battery

• Detection angle and range 90°C up to 10m

• Outputs 1 wired OUTPUT for siren

• Inputs 1 wired input for a break circuit
