PLUG & PLAY KTM Alarm System

Plug & Play KTM alarm system - More Info/Buy Online

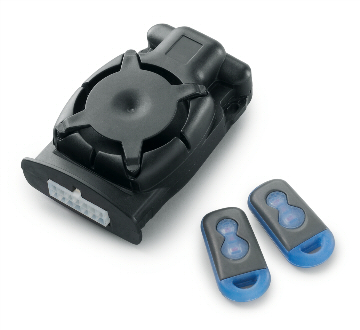

Plug & Play KTM alarm system using the new  Meta Defcom3.1b with Bluetooth technology -  More Info

B9.5 ID Tag optional fob for the new Defcom3.1b allows automatic arming & disarming of the alarm when in close proximity of the motorcycle, no need to press any buttons

More Info

Features:

• Two anti-scan / antigrab, rolling code micro transmitters, one of which can be upgraded to a B9.5 Tag remote fob
• Passive arming single circuit immobiliser

• Passive arming for full alarm system (optional - not required for 2 to1)

• Hazard flash

• Battery Backed Up Siren

• Visual and audible arming signals (selectable)

• Secure override facility activated by the owners individual PIN code in the event of loss or damage to transmitters

• Diagnostic LED

• Internal Movement sensor (can be excluded)

• Loud 114db remote siren

• Sleep mode with zero battery drain after 20 days (Only avaialble when bought from Abacus Car Alarms, Normally 5 days)

• Low 1.8 mA current consumption

• Low bike battery warning when disarming

• Auto re-arm of immobilisation if ignition is not turned on within 50 seconds

• System test facilities in first 25 seconds of arming informs of any faults

• Panic facility

• Movement sensor deletion facility

• Two additional protection circuits

• Facility to power auxiliary modules (additional siren etc)

• Alarm automatically re-arms if triggered

• Upgrade to key remote

• Operating temperature -25C to 85C

• Thatcham Approval Number TMCU-236/0106 (for use as an upgrade alarm)

• Optional equipment on Many KTM motorcycles (see below)

• Approved by Yamaha (motorcycles) UK

This kit will fit the following bikes:

•KTM 1190 RC8/R (this kit is not supplied with the indicator resistor kit, KTM part no. 69012035050)
•KTM 990 SM
•KTM 990 SMT (Not pre 2009 950cc fitted with the 18 way plug)
•KTM 990 Adventure 2009-ON(Not pre 2009 950cc fitted with the 18 way plug)
•KTM 125/200/390 DUKE 2011-ON. -Please check for 2021 models
•KTM 125/200/390 RC 2014-ON.
•KTM 690 DUKE 2012-ON. -Please check for 2021 models
•KTM 1050/1190/1290 Adventure/Adventure R 2013-ON.
•KTM 1290 Super Adventure.
•KTM 1290 Superduke R 2014-ON.

KTM 790 2017-ON

Will also fit the Husqvarna Vitpilen 701 2018 - On (choose KTM 690 Duke in the option panels)

Please note we have been informed by a KTM dealer the alarm plug is no longer fitted to 2021 year 390 & 790 Dukes, there may be other 2021 models not equiped with the plug, please make sure the alarm plug is fitted to the bike before ordering the alarm kit -see below

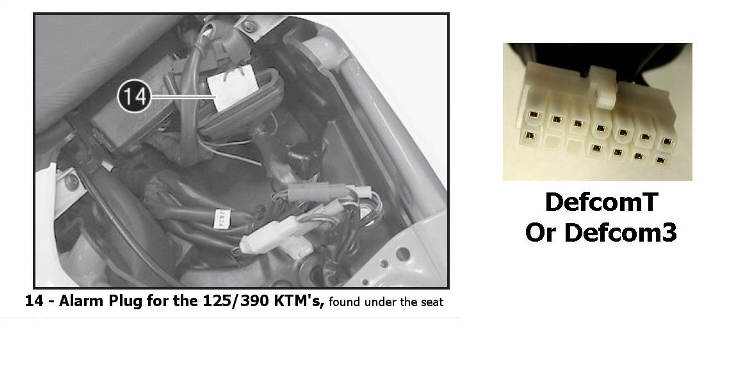

If your bike is not listed this kit will fit all KTM motorcycles fitted with the 14 way alarm plug shown below. For more info contact the office on 0208 677 1999
